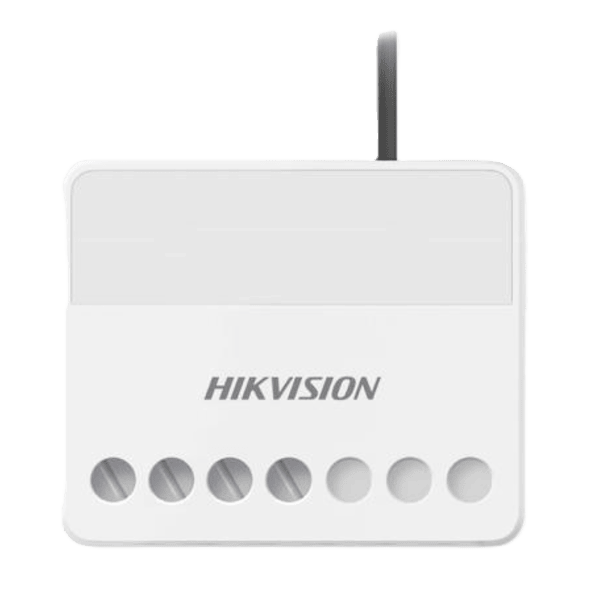

Relay module
Model : DS-PM1-O1L-WB 433 MHz two-way wireless communication AES-128 encryption LED display, show status of device and replay on/off display Small case design, which can be put into hiding places easily Automation operating, one button turn on/off from APP/Keyfob/Keypad Setting scenarios by different events An alarm input for tamper, NO, NC
Wireless Relay Module – Smart & Secure Automation
1. Overview
🟢 433MHz two-way wireless communication for stable connectivity
🟢 AES-128 encryption for enhanced security
🟢 LED display shows device status and relay on/off state
🟢 Compact design for discreet installation in hidden spaces
🟢 Automated operation – control via App, Keyfob, or Keypad
🟢 Customizable scenarios based on different events
🟢 Alarm input for tamper protection (NO/NC)
2. Software Features
🟢 Scenario Setting Options:
- By Alarm
- By Operation
- By Fault
- By Schedule
- By Manual
🟢 Learning Button: 1 (for device registration)
3. Wireless Transmission
🟢 RF Frequency: 433MHz
🟢 RF Method: Two-way communication
🟢 RF Modulation: 2GFSK
🟢 RF Distance: Up to 800m (open area)
🟢 Wireless Security: AES-128 encryption
4. Power & Electrical Characteristics
🟢 Power Supply: DC 7V – 24V
🟢 Relay Output: 1, NO/NC (0 – 36V DC, Max 5A)
🟢 Alarm Input: 1 for tamper (NO/NC)
5. Environmental Conditions
🟢 Operating Temperature: -10°C to +55°C (14°F to 131°F)
🟢 Operating Humidity: 10% to 90%
6. Display & Indicators
🟢 LED Status Indicators:
- Register/Signal (Green/Red)
- Power (Green)
- Relay Status (Blue)
7. Dimensions & Design
🟢 Installation Method: Wall Mounting
🟢 Dimensions: 38mm × 25mm × 18mm
🟢 Shell Material: Plastic
🟢 Color: White
🟢 Weight: 28.5g
8. Why Choose the Wireless Relay Module?
✅ Compact & discreet design for flexible placement
✅ Secure & encrypted communication with AES-128 encryption
✅ Versatile control options via App, Keyfob, or Keypad
✅ Multiple scenario settings for automation
✅ Reliable performance with long-range wireless transmission
📞 Contact us today for more details and installation assistance! 🚀
